This is a complete robotic arm kit which includes high quality LASER cut acrylic parts, 4 B.O. motors, Nut-bolts, 4 PCB mounted direction control switch, 9v battery, 9v battery connector and other required components with a complete instruction manual and connection diagram. This robotic arm kit includes base, arm structure, gripper section all in preassembled format with other components.

To use this robotic arm for your project/other purpose, you just need to put all the things together  (base, arm structure and gripper) as described in instruction manual and then connect the motors with power supply (3-12v DC) through DPDT switches (for manual control) or use motor drive to control it with Ardno or other IoT board. Motor driver or Ardno is not included with the kit.

Features:

The robotic arm is cute, high quality, full functional and fun.

Compatible with DPDT switches for manual control.

Compatible with Ardno or other IoT board.

Use motor driver, Ardno, Bluetooth/Wi-Fi module for wireless control from mobile.

World`s most economical full functional robotic arm.

Dimensions:

Check out the dimensions of this robotic arm in attached dimension image.

Specifications:

– B.O. Motors (Straight) operating voltage = 3-9v DC

– B.O. Motors speed = 30 RPM (at 9v DC, use low voltage to decrease the speed of movements or use micro-controllers to control the speed)

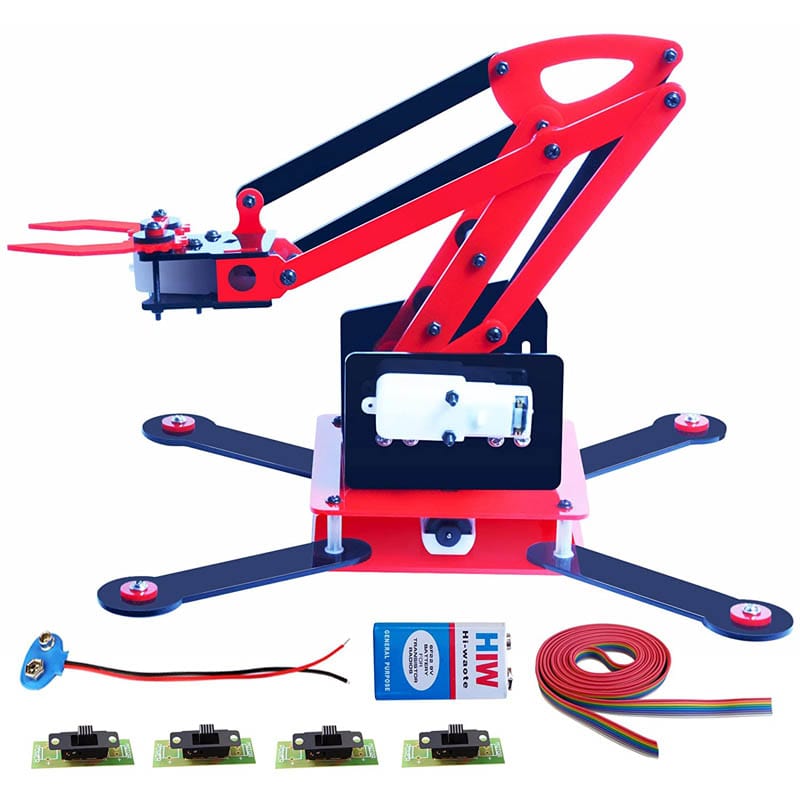

Kit contents:

• Complete robotic arm assembly with gripper, base, arm and link system
• 4 BO motors fitted with robotic arm assembly
• 4 PCB mounted direction control switch
• 9v battery
• 9v battery connector
• 8-core rainbow wire strip (Approx. 1.5 mtr)
• Instruction manual
• Connection diagram
